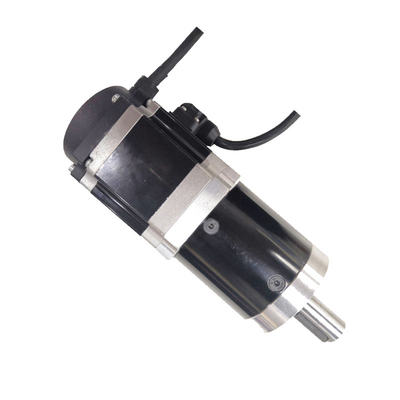

200W Access Control Dripproof Door DC 60mm Servo Motor For Pedestrian Door 2500rpm 1:50 Reduction Ratio

1 Set
MOQ
$242.00(1 - 9 Sets) $229.00(10 - 49 Sets) $217.00(50 - 99 Sets) $205.00(>=100 Sets)
Preis
200W Access Control Dripproof Door DC 60mm Servo Motor For Pedestrian Door 2500rpm 1:50 Reduction Ratio
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 3months-1year
Model Number: EBS60F-200B-30CP4Z-B7BT-S0-00+JYPNE60-50-F-B3-02
Usage: Turnstile
Type: SERVO MOTOR
Torque: 0.64N.M
Construction: Permanent Magnet
Protect Feature: Drip-proof
Speed(RPM): 2500RPM
Continuous Current(A): 11A
Efficiency: IE 4
Nominal Voltage: DC 24
Nominal Power: 200 W
Nominal Current: 5.5 A
Nominal Speed: 2500 rpm
Encoder Resolution: 1000 ppr
Poles: 8
Reduction Ratio: 1:50
Working Temperature: -20℃ ~ 55℃
Application: for Swing Gate / Flap Gate / Sliding Gate etc
Product Name: servo motor
Grundinformation
Model Number: EBS60F-200B-30CP4Z-B7BT-S0-00+JYPNE60-50-F-B3-02
Zahlung und Versand AGB
Packaging Details: standard package
Supply Ability: 100000 Set/Sets per Month
Produkt-Beschreibung
Product Description
Specification
Feature:

● Maximum outer diameter 60mm, motor and reducer split, suitable for channel gate movement structure;

● Comes with a 1000-line incremental encoder with an optional 1:50 reduction ratio to achieve high-precision control of the movement of the movement;
Motor Model
EBS60F-200B-30CP4Z-B7BT-S0-00
Nominal Voltage
24 VDC
Nominal Power
200 W
Nominal Current
5.5 A
Nominal Speed
2500 rpm
Encoder Resolution
1000 ppr
Norminal Torque
0.64 N.m
Maximum Torque
1.92 N.m
Poles
8
Gear Box Model
JYPNE60-50-F-B3-02
Reduction Ratio
50:1
Nominal Torque
36 N.m
Maximum Torque
72 N.m
Axial Load
230 N
Radial Load
265 N
Backlash
< 16 arcmin
Average Lifetime
20000 Hours
Noise
< 58 dB
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
